LNG-service piping — welded branch leak
Field Reality

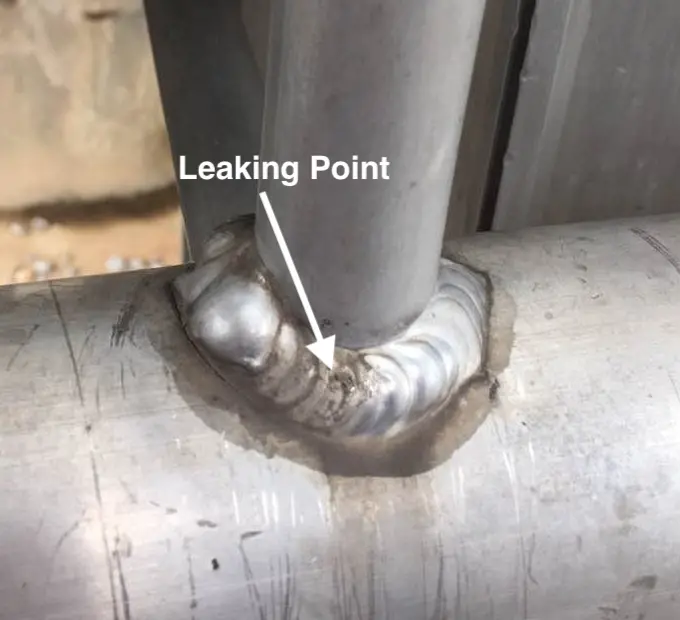

LNG-service pipework cycling rapidly between a warm state of roughly 10–50 °C and a reported cryogenic phase near −173 °C. The leak was reported at a branch-to-header weld — the point where two different thermal responses meet. Frost stood on the operating pipework during the cryogenic phase, which is how the condition announced itself.
Key verified Field facts
- Medium
- LNG operator-reported service
- Temperature
- Warm state approximately 10–50 °C, cryogenic phase reported near −173 °C operator-reported; describes this Case and its transitions, not a continuous-service rating
- Asset
- LNG-service pipework with welded branch connections operator-reported
- Geometry
- Branch-to-header welded connection observed in the Field record
- Field condition
- Reported leak at a welded branch, under rapid warm-to-cryogenic cycling; localised frosting visible during the cryogenic phase observed in the Field record
- Dominant hazard / constraint
- Repeated differential thermal movement at a welded geometry an engineering consideration for this Case; the record does not establish root cause
Resulting ISB

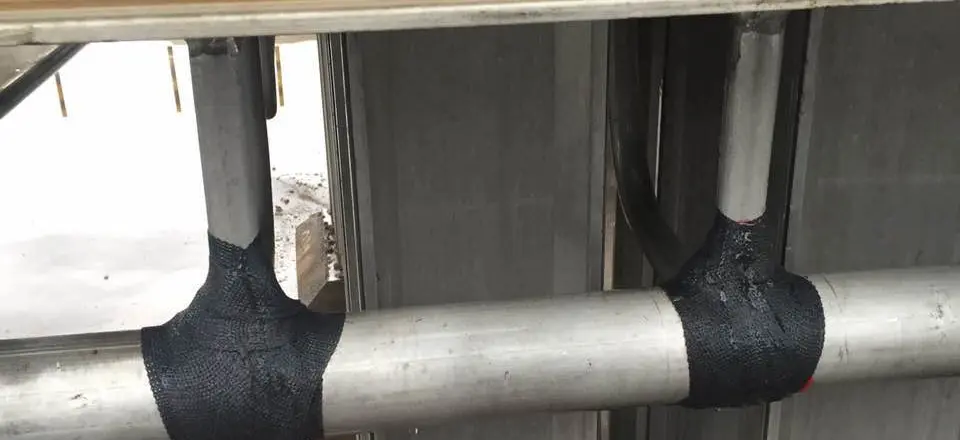

Case-specific ISBs were constructed around the welded branch connections and given a fibre-reinforced external protection layer. The completed bodies were observed in place during the reported cryogenic operating phase.
Case boundary
This Case records one unique Field Reality. It is not a construction instruction and not a template. A Solution developed for one Field must not be copied into another Field without new DendroSeal Understanding.
